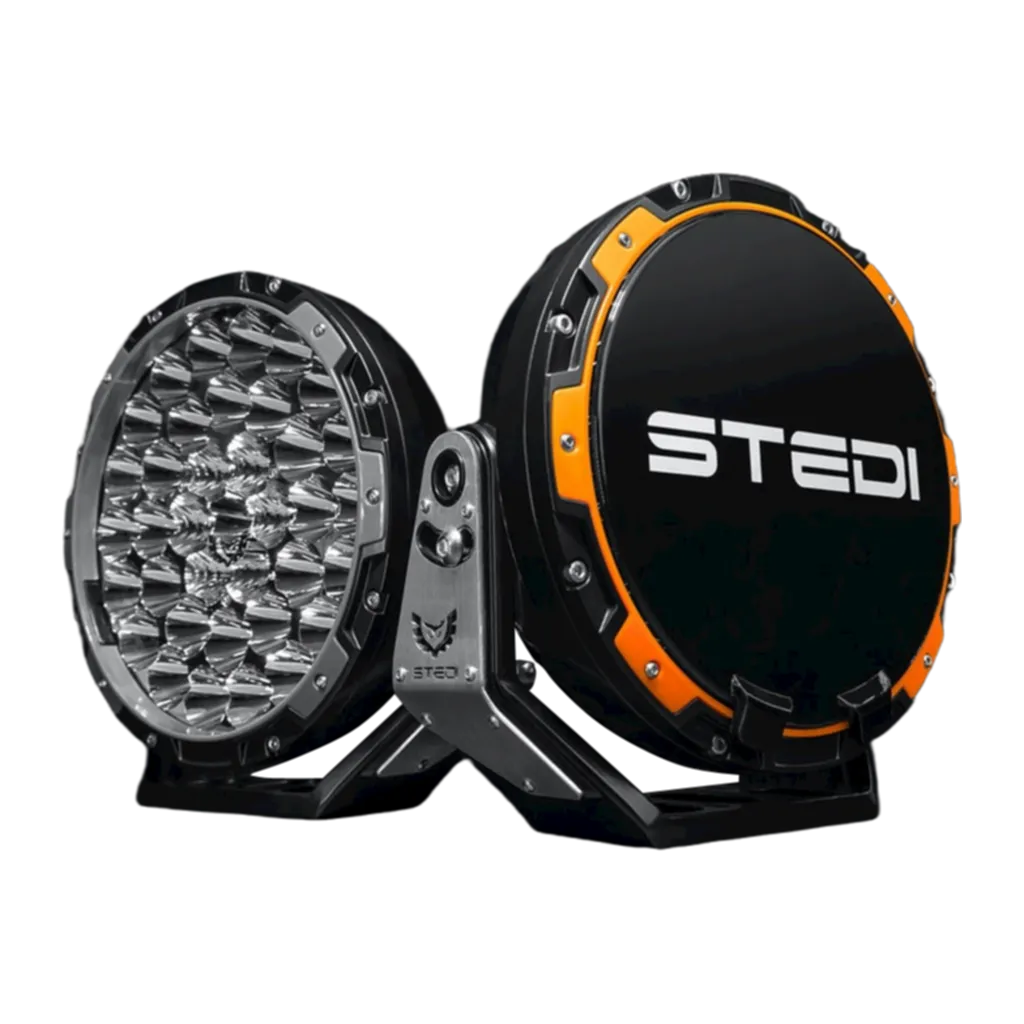

STEDI is once again revolutionizing the auxiliary driving light market with the launch of their PRO Edition. STEDI's brand-new Type-X PRO variant exemplifies STEDI's dedication to elevating light output and dependability above the standards set by the most reputable competitors in the market.

With the introduction of STEDI's PRO Edition, they are once again revolutionizing the auxiliary driving light market. STEDI recently released Type-X PRO variation is a prime example of their commitment to raising light output and dependability above the benchmarks established by the most respected rivals in the industry.



Features

• 37 Oslon High-Flux LEDs
• 6 x 50° Spread, 31 x 5.8° Pencil Beam
• 1.15km Bean Throw
• 10mm High-pressure die-cast aluminum bracket
• IP68 Rated - Submersible to 3m
• Unrivaled Light Volume and Beam pattern





With the introduction of STEDI's PRO Edition, they are once again revolutionizing the auxiliary driving light market. STEDI recently released Type-X PRO variation is a prime example of their commitment to raising light output and dependability above the benchmarks established by the most respected rivals in the industry.

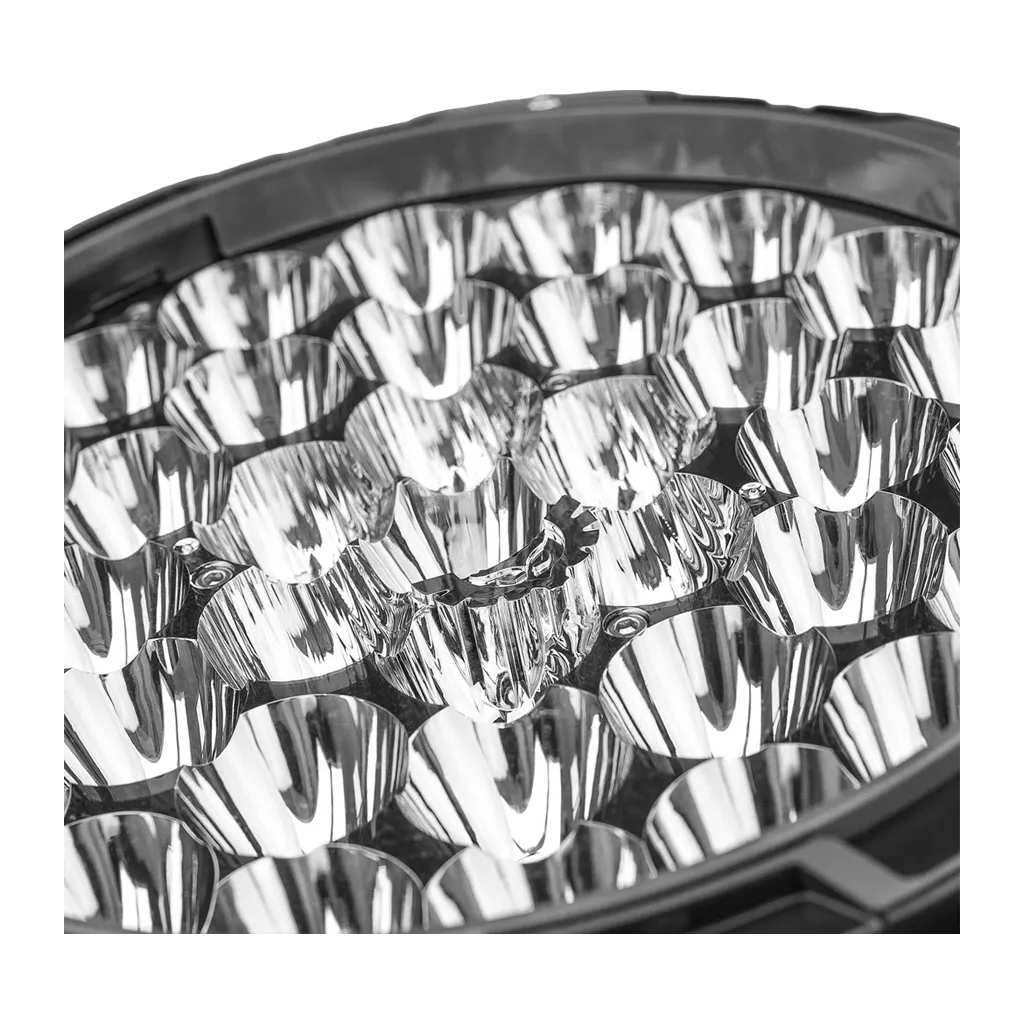

The reflector shape was repeatedly adjusted using the most up-to-date optic simulation modeling to produce a highly-functional beam pattern producing 1.15km of light out. You'll only be wanting to drive after sunset due to the astounding beam throw and uniform wide beam.

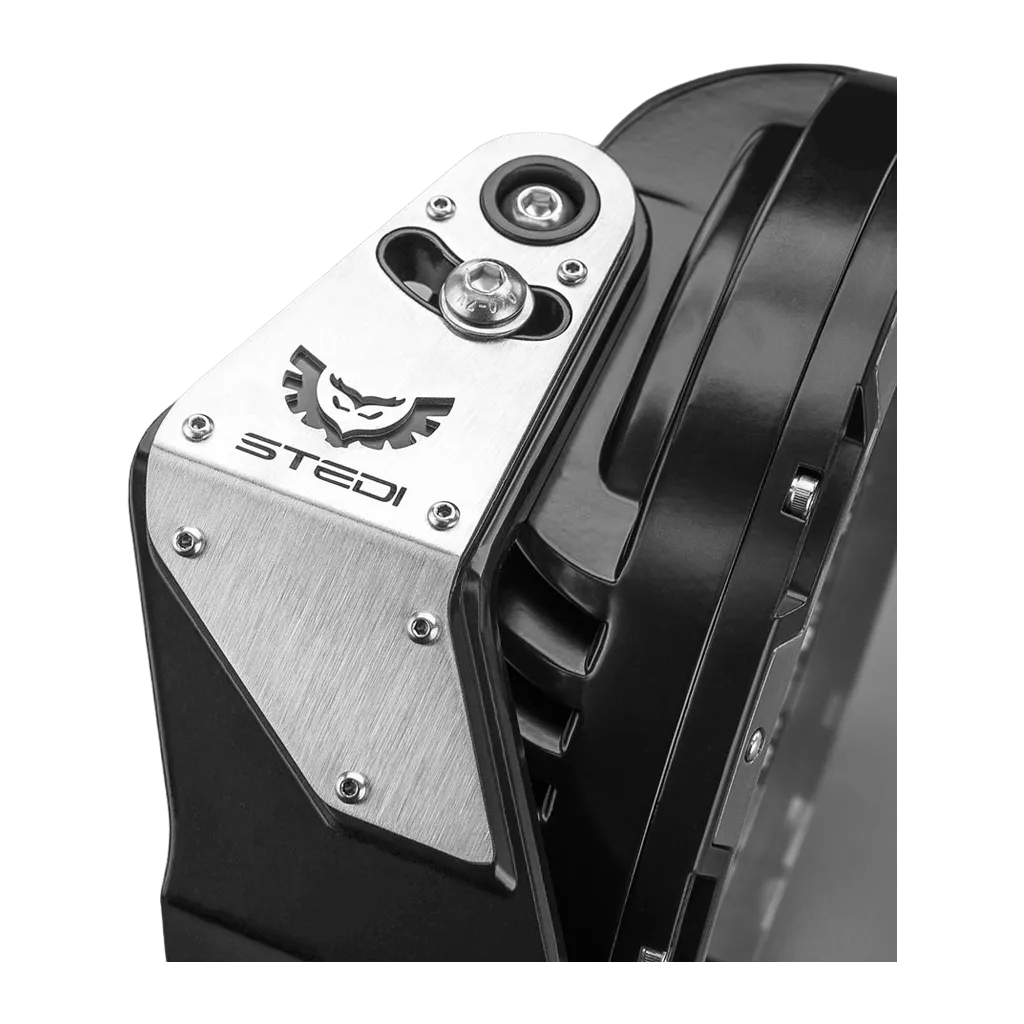

Folded steel brackets are obsolete; forget about them. It's all about pushing limits with the Type-X PRO. The bracket system is an engineering marvel made of 10mm thick high-pressure die-cast aluminium. STEDI Type-X PRO bracket was created to repeatedly survive severe and lengthy corrugations. In keeping with STEDI's distinctive design philosophy, STEDI have added brushed stainless steel shoulder plates, which will look just as well mounted to a PRO race buggy as they will on your tricked-out 4WD.



Specifications

• LED - 37 x Oslon High-Flux LED
• RAW Lumens - 26,270 (Pair)
• Tested Lumens - 15,870 (Pair)
• AMP Draw - 10.4A @ 13.2v (each)
• Power Draw - 137W
• Candela - 1,334,025cd
• Beam Pattern - 6 x 50° Spread, 31 x 5.8° Pencil Beam
• Ingress Protection - IP68
• Colour Temp - 5700K
• Voltage - 12v & 24v
• Weight - 2.860kg (each)
• Operating Temperature - -40°C to 60°C

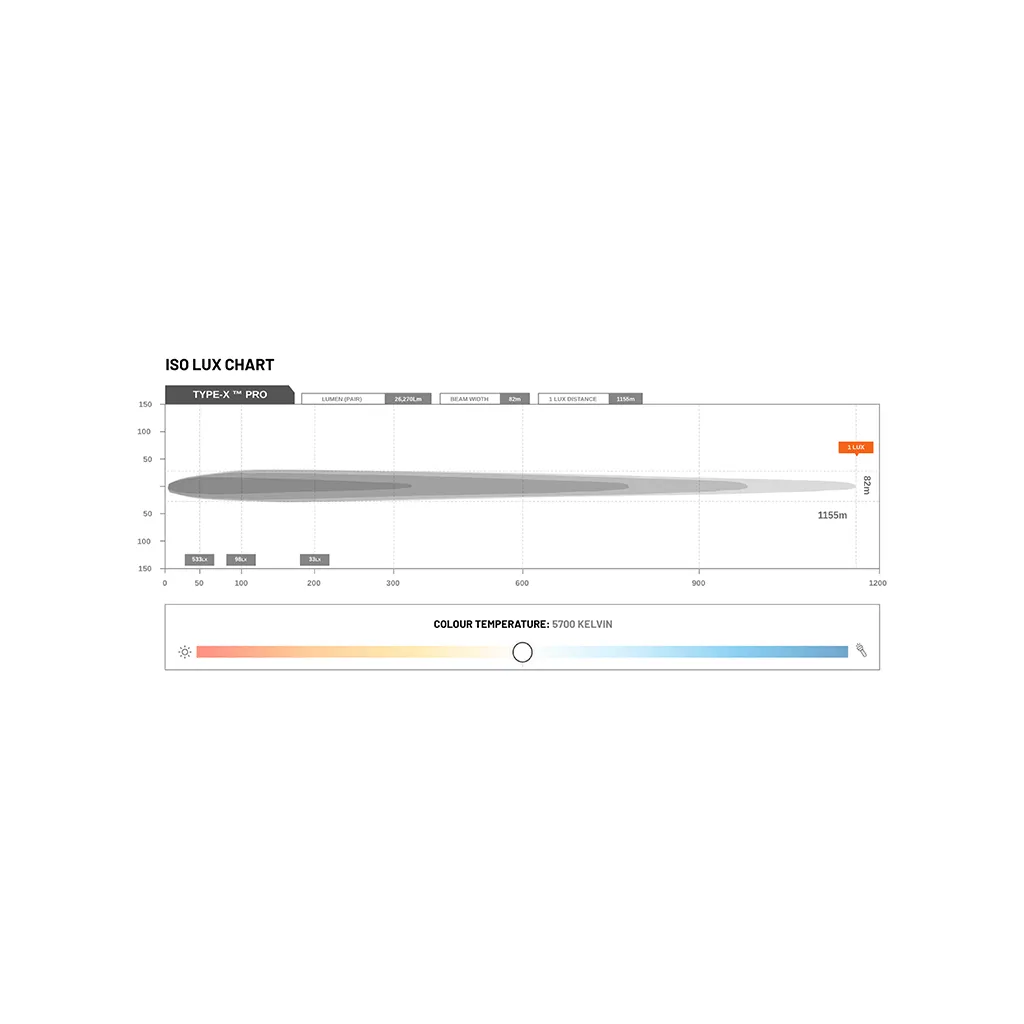

Photometric Data

10m - 13,340 Lx
50m - 533 Lx
200m - 33 Lx
300m - 14 Lx
400m - 8 Lx
1,000m - 1.3 Lx
1,155m - 1 Lx



STEDI High-Performance LED Lights and Accessories for 4WDs
STEDI, headquartered in Victoria, is committed to being the global leader in high-performance auxiliary LED lighting solutions. STEDI driving lights and LED light bars are among their best-selling 4x4 brands for hardcore off-road use.

STEDI has long been associated with cutting-edge design. The brand has raised the bar again with its all-new edge-to-edge bonded lens design. STEDI is dedicated to inventing and manufacturing the best-LED lighting solutions on the market at affordable prices and 4WD247 makes this all possible by bringing STEDI’s products straight to you.
